easy-loading pump head YG15 Main Feature
YG15 is an easy-to-install pump head, which can quickly assemble or replace the hose; it has an adaptive tube clamp device.
The pump body is made of aluminum alloy, with special coating on the surface, and the rollers are made of stainless steel.
The pump head has excellent structural performance, high temperature resistance and durability.

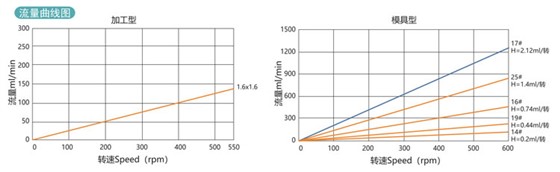

easy-loading pump head YG15 Flow Curve

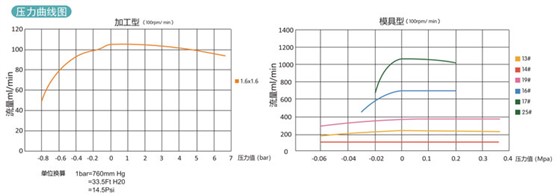

Easy-Loading Pump Head YG15 Pressure Curve

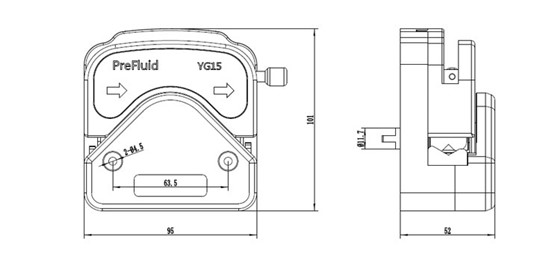

easy-loading pump head YG15 Dimension

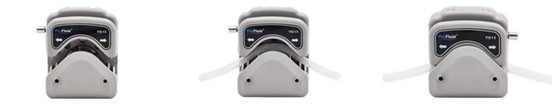

easy-loading pump head YG15 Tube loading
easy-loading pump head YG15 Product Guide
| Model | Flow range | Applicable | Pump Housing | Roller Material | rollers | eight |
| Processing | 0-140ml/min | φ1.6*1.6 | Aluminum alloy | SS | 4 | 1.04 |
| Mould | 0-1272ml/min | 14# 19# 16# 25# 17# | Aluminum alloy | SS | 4 | 1.04 |
