Product description
WL300B -TH25 is a newly developed spring-type pump head with two rollers. The design of the spring-type two-rotor roller assembly greatly reduces the shear force of the pump and improves the service life of the hose; the pump cover is made of Shiming engineering plastics, which is easy to observe the pump. The TH25 pump head is specially designed for Tangential Flow Filtration (TFF), Virus Filtration (VF) and High Performance Liquid Chromatography (HPLC) applications, and can achieve linear flow within 1.5bar pressure, up to 3.2L /min; At the same time, it can be adapted to four specifications of 15# 24# 35# 36# hoses.
Product Details
-
-

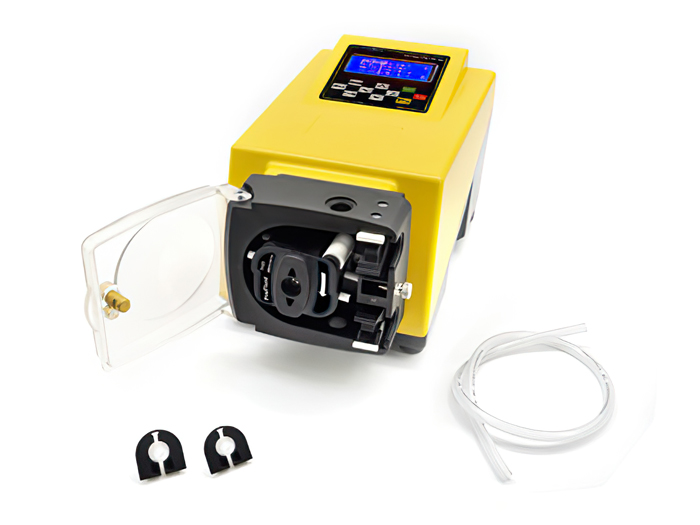

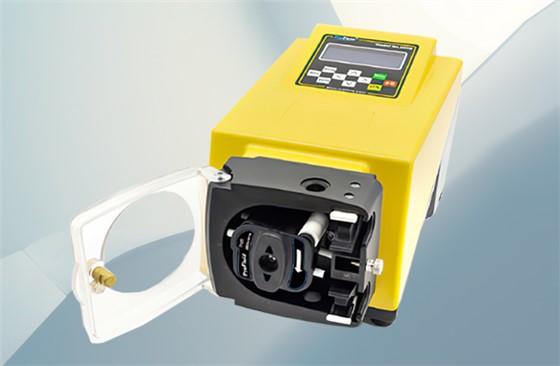

WL300B-TH25 peristaltic pump is specially designed and manufactured for biological preparations, vaccines and other industries; the surface of the casing has a special coating, which is convenient for disinfection and sterilization.
WL 300B- TH25 peristaltic pump adopts a large LCD screen, which can display a variety of parameters and menus in Chinese and English. The drive can adjust the speed or flow by pressing the buttons. It has the function of running total amount and quantitative timing, and has a power-down memory function. It can automatically save the operating parameters of the last time the power was turned off.
Product Features
WL 300B-TH25 peristaltic pump fully complies with CE requirements;
Ultra low shear
Stable linear flow at 2 bar pressure.
Designed for downstream bioprocessing
In the past, peristaltic pumps have been ideal for low-pressure upstream processes, including fermentation feeds and medium transfer, and gentle peristaltic pump delivery ensures low shear, high accuracy, and zero cross-contamination to maintain cell viability and corresponding high cell viability density.
Out of this consideration, our company designed and developed the TH25 pump head, equipped with a new disposable pipeline kit design, which is more convenient for the downstream bioprocessing field.
Product performance

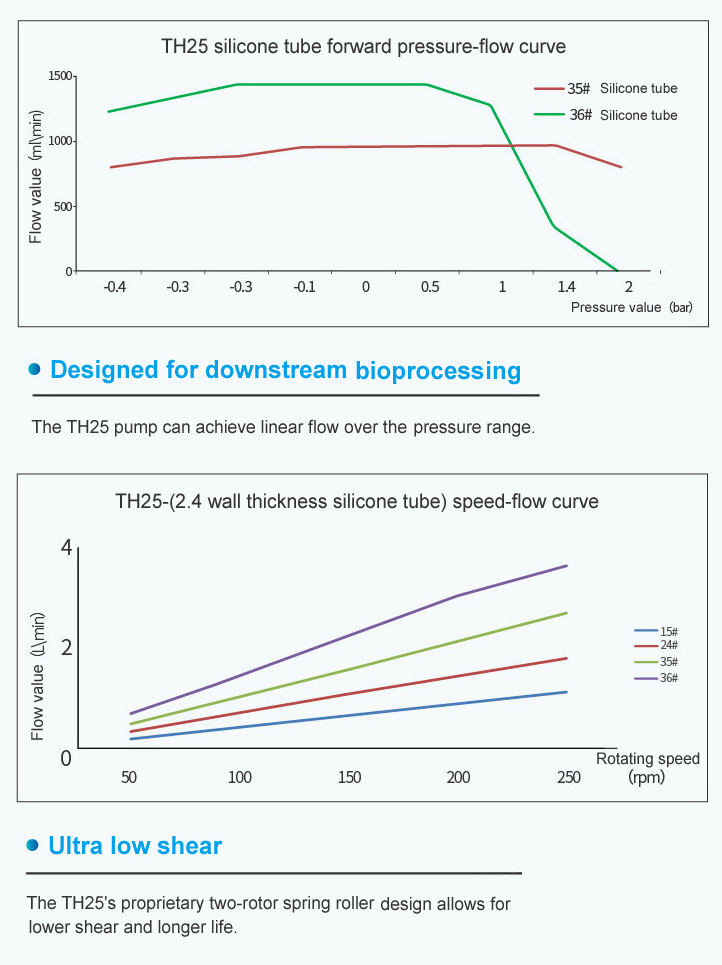

TH25 can achieve linear flow within 2bar pressure, and the maximum flow rate can reach 3.2L/min;The design of the spring pump can greatly reduce the damage of shear force to the cells.The surface of the driver has a special coating, which is convenient for disinfection and sterilization in pharmaceutical factories.
Ultra low shear;Stable linear flow at 2 bar;Specifically designed for downstream bioprocessing.
Technical parameters
| WL300B-TH25 peristaltic pump Technical parameters | |
| Model | WL 300B-TH25 |
| Speed range | 0.1~ 220rpm |
| Revolution | 0.1rpm |
| Flow range | 1~3.2L/min |
| Adjustalbe mode | Button |
| Drive mode | Brushless DC Motor |
| Display mode | LCD display |
| External control interface | Remote automatic control(4~20mA) |
| Communicaiton mode | RS485 interface，ModbusRTU protocol |
| Applicable power supply | AC220V 50Hz |
| Power consumption | ≤50W |
| Working environment | Environmental temp.0~40°c，relative humirity<80°c |
| Housing | Metal forming shell with special coating on the casing surface |
| Dimension | 200mmx196mmx433mm |
| Weight | 10kg |
Tube parameters
The synergy of the single-use tubing set, the TH25 peristaltic pump and the single-use tubing set makes the tube installation more convenient and easy to install in place; the replacement of the liquid tubing can be completed in a short time, while avoiding installation misalignment.
Common advantages of single-use tubing kits:
1. It can shorten the verification time of the user and reduce the verification cost;
2. Quick replacement can be achieved, and the operation is convenient and fast;
3. Various pipeline configurations can be selected first to meet the requirements of different customers, and can be customized according to the actual needs of customers.

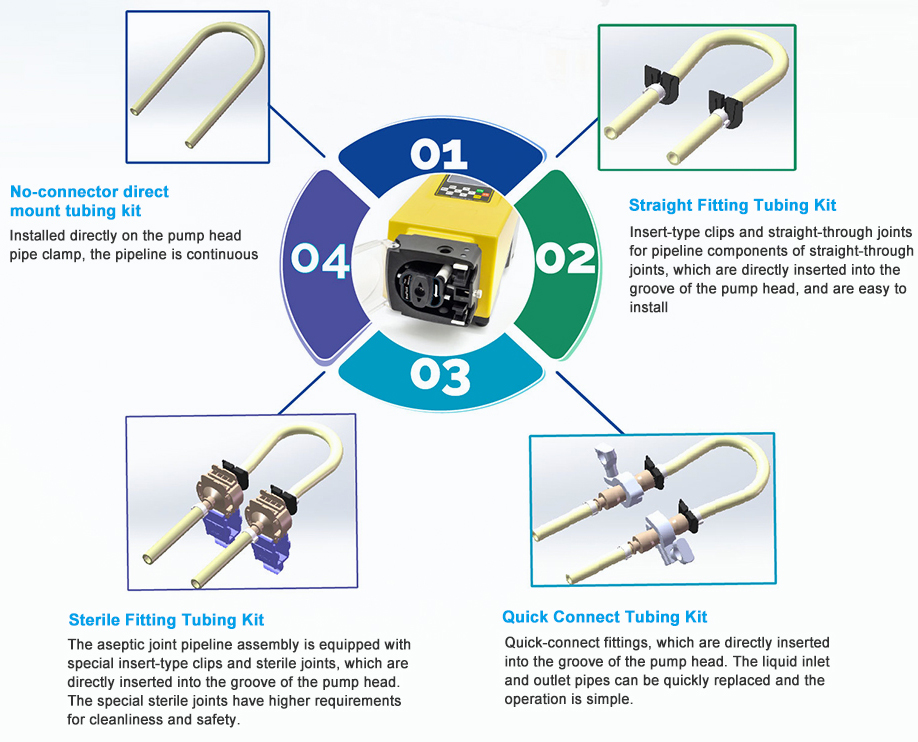

A variety of tube installation methods to meet your needs:
The single-use tubing set is always fixed in the same position on the pump head—the groove on the pump head—to ensure a stable and consistent connection every time. In addition, the disposable tubing set has four types of connectors (including no-connector, straight-through, quick-fit, and sterile), and can be customized according to customer requirements. All components are manufactured in ISO class 100,000 cleanrooms.
Tubing Kit Recommendations
